Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling

Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling 9Kw/30000Btu A+++ 415V

1 X Daikin EDLA09D3W1 Altherma 3 Monobloc Air to Water Heating and Cooling 9Kw/30000Btu A+++ 415V 3Ph
1 x BRC1HHDK – User interface controller

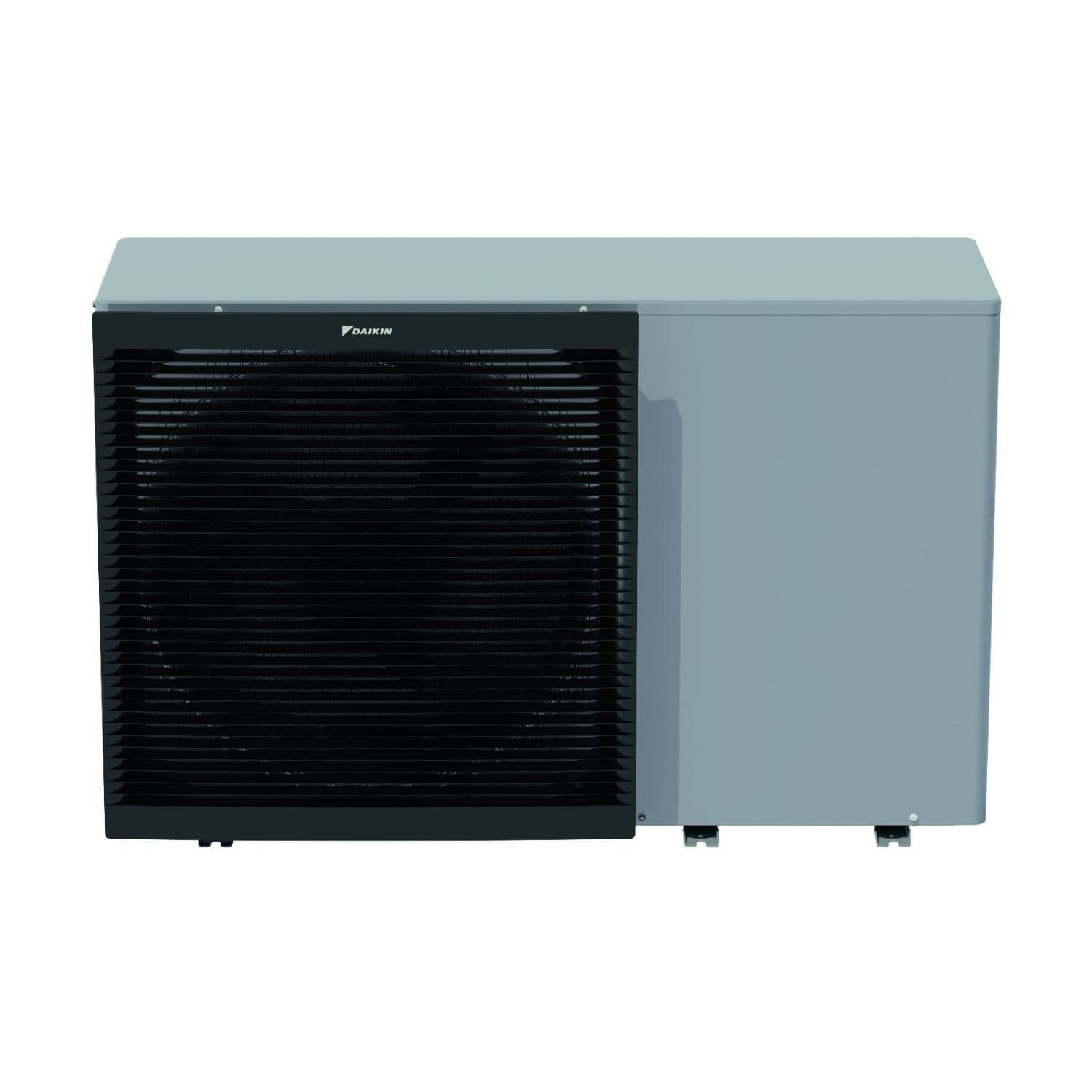

The Daikin EDLA09D3W1 Altherma 3 Monobloc Class 9 is a highly efficient air-to-water heating and cooling system, delivering 9Kw/30000Btu with an A+++ energy rating. Designed with a sleek, modern aesthetic, it features a black front grill that conceals the fan, minimizing sound perception. The light grey casing reflects its surroundings, helping the unit blend seamlessly into any decor. This monobloc unit integrates all necessary hydraulic parts, eliminating the need for an indoor unit and making it ideal for installations where indoor space is limited.
This third-generation monobloc unit from Daikin utilizes the eco-friendly R-32 refrigerant and features a single, larger fan that replaces the typical double fan used in high-capacity units. The fan’s redesigned shape reduces contact surface with air, enhancing air circulation and lowering sound levels. Capable of operating in temperatures as low as -25°C, the Altherma 3 ensures reliable heating down to -20°C, delivering a leaving water temperature (LWT) of 60°C at -7°C. This makes it suitable for a variety of applications, including renovations, replacements, and large new buildings.
The Daikin Altherma 3 Monobloc can be combined with domestic hot water systems, enhancing its versatility. The optional W-LAN cartridge connection allows for remote control and monitoring, adding a layer of convenience. This system supports underfloor heating and heat pump convectors (HPC), making it adaptable to various heating and cooling needs. Its monobloc setup allows for installation under windows, providing a space-saving solution without compromising performance.
The Altherma 3 Monobloc is equipped with an integrated 3 kW heater, providing additional heating capacity during extremely low outdoor temperatures. This backup heater also serves as a safeguard in case of unit malfunction and offers freeze protection for the outdoor water piping during winter. This ensures that the system remains operational and efficient even in the harshest conditions, providing peace of mind and consistent comfort.
Overall, the Daikin EBLA09D3V3 Altherma 3 Monobloc offers a comprehensive solution for heating and cooling needs, combining advanced technology with user-friendly design. Its energy efficiency, low noise operation, and versatile application options make it a top choice for both residential and commercial settings. Whether for new installations or upgrades, this unit delivers reliable performance and superior comfort.
