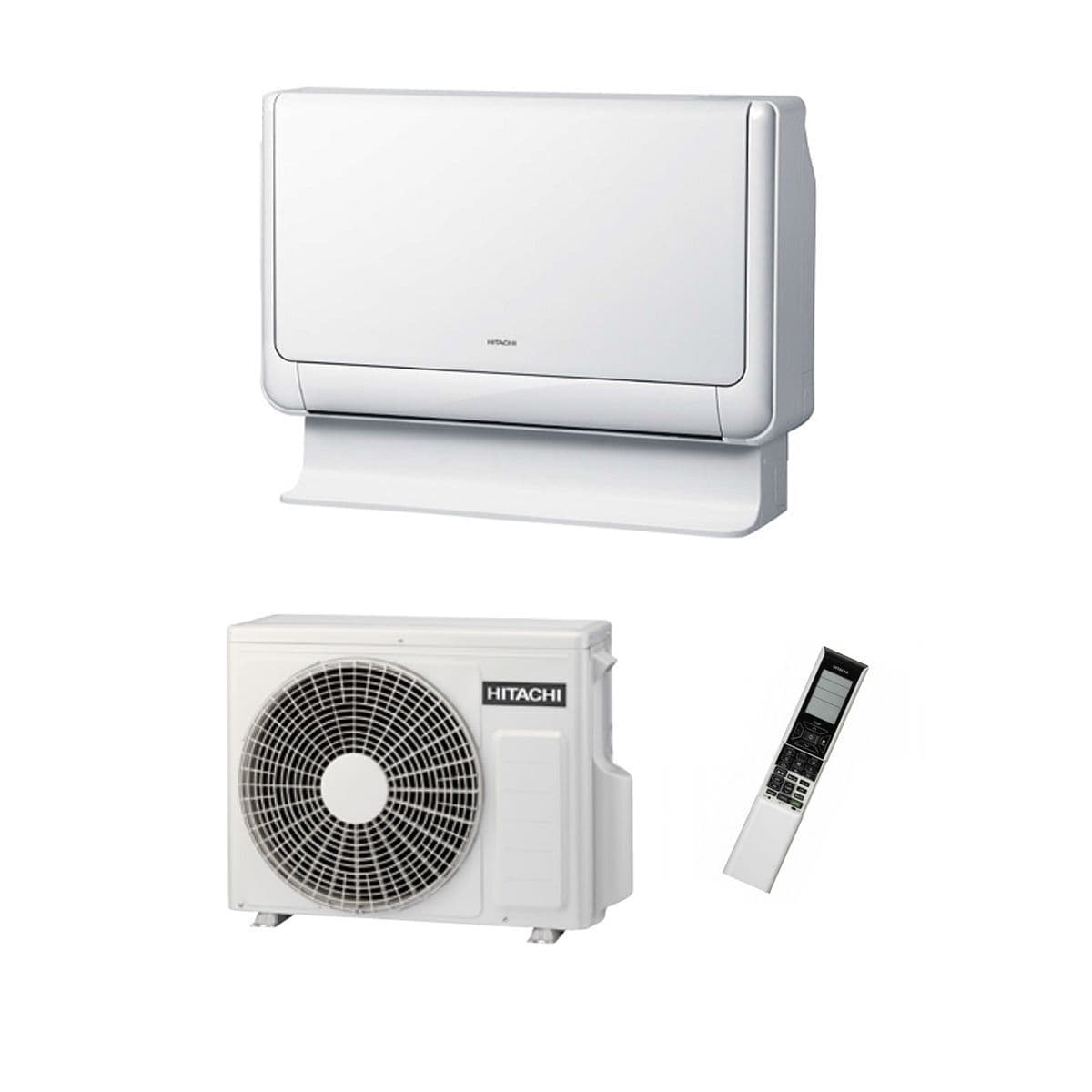

Hitachi Shirokuma RAF 25RXE Floor Mounted 2.5kw Air Conditioning System

£1,989.00

Hitachi Air Conditioning Shirokuma Floor Mounted Inverter Heat Pump 2.5Kw/9000Btu A++ 240V~50Hz

The Hitachi air conditioning RAF Shirokuma floor mounted range are highly economical and environmentally friendly. The flat design and designer looks make the RAF Shirokuma floor mounted air conditioning heat pump systems unique and comes with superior air flow system for better distribution of air. Using the latest compressor and inverter technology keeps power consumption to a minimal, but at the same time providing powerful cooling and heating. All Hitachi’s air conditioning units offer high seasonal efficiencies, with models in this series achieving high seasonal performance SCOP A+ 4.3 and SEER A+ 6.0 . ​​The compact dimensions of the RAF Series (590 x 750 x 215) are common across the entire range and allow for easier integration. The Indoor air flow comes from the upper and lower outlets allows the room to be heated or cooled evenly and quickly from floor to ceiling.

Enhanced inverter performance and system performance are achieved by the addition of a ‘Direct Current’ drive compressor, resulting in up to 10% more efficient than standard ‘AC’ (Alternating Current) Systems. The variable speed compressor (inverter) enables the system to rapidly reach the desired room temperature setting. Once the desired room temperature has been achieved the compressor rotation peed is reduced, saving up to 30% in energy usage (when compared to standard fixed speed systems). Includes 24-hour, 7-day Infra-red remote controller and ECO operation energy saving function Leave Home Function – set temperature at 10°C automatically when no one is at home for up to 99 days.

Volt Free control of the air conditioning system option, used to turn the unit on/off remotely after receiving a signal such as key-card, door or window switch, specifically useful in hotel rooms to prevent unnecessary use. Accessory SPX WDC3 is required.

Category: Tags: , , Product ID: 30283

Description

Product Key Feature’s:

High CoP, up to record 4.24 A++
Infra-red controller
Slim construction 215mm
Pipe runs up to  20 meters
Low noise 23dBA on low
Cold draft prevention on heat pump start up
Fault diagnosis
Auto re-start after power interruption
PRE-CHARGED WITH REFRIGERANT for up to 7.5 metres pipe length
Light weight noise absorbing outdoor unit
5 years Warranty

Wall Mounted RAK-25RXE
Power source 1 ph 240V
Type  Inverter  rotary
COOLING (nominal) max. kW 2.5 / 8250 BTU
HEATING (nominal) max. kW 3.4 / 11900 BTU
UK Cooling (max) kW  3.1 /  BTU / 9900
UK Heating (max) kW  4.4 / BTU 15500

Fuse Rating 16A

E.E.R.  n/a
Energy label in heating  A++
Energy label in cooling  A++
C.o.P  4.31
ECA – Yes

Indoor Unit RAK-25RXE

Exterior dimensions (mm) 590 x 750 x 215
Net weight kg 7.5
Air flow rate* (cooling) (m3//min) 8.0/7.3/6.4
Air flow rate* (heating) (m3//min) 8.0/7.3/6.4

Outdoor Unit RAC-25WXA

Exterior dimensions (mm) 548 x 750 x 288
Net weight kg 31
Power Source Rating MCB A 15A
Refrigerant max piping length m 20
Pipe sizes – 1/4″ x  3/8″
