Description
Product Key Feature’s:
• Anti Corrosion Fin (Outdoor)
• Weekly Program
• High Power Output
• Easy-to-Clean Air Filter
• Optimal Air Distribution
• Auto Cleaning
• Auto Changeover
• Auto Restart
• Bulit in controller
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
• Optimal air distribution with directional Air flow system

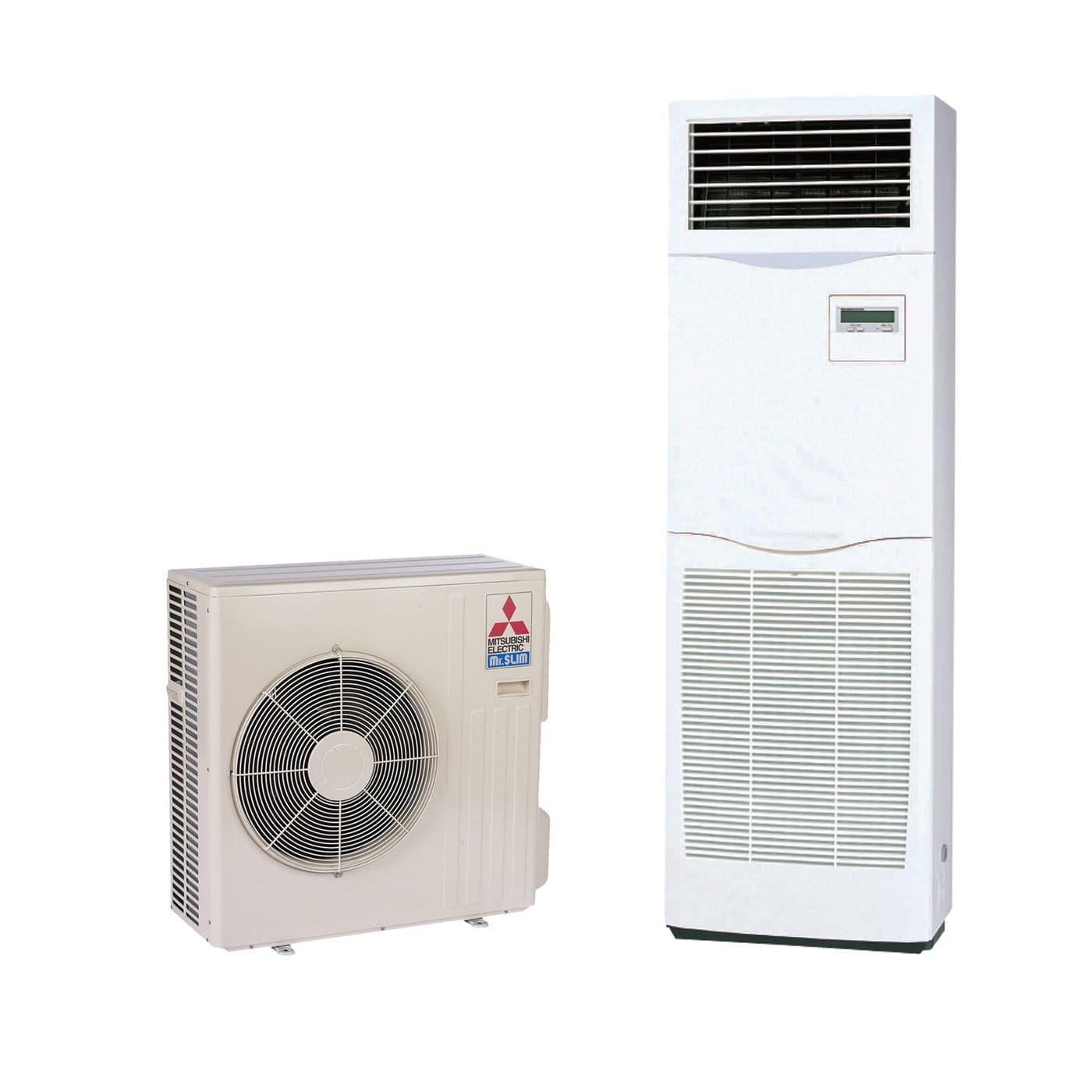

PSA-RP125KA Indoor Unit:
| Capacity (kW): | |||
| Heating (Nominal) (Low – High) | 16.00 (5.00 – 18.00) | ||
| Cooling (Nominal) (Low – High) | 13.40 (5.50 – 15.00) | ||
| Heating (UK) (Low – High) | 13.6 (4.25 – 15.33) | ||
| Cooling (UK) (Low – High) | 12.30 (4.95 – 13.80) | ||
| SHF R410A (Nominal) | 0.71 | ||
| COP / EER (Nominal) | 3.34 / 3.30 | ||
| Energy Label Heating / Cooling | B / B | ||
| Width – mm | 600 | ||
| Depth – mm | 360 | ||
| Height – mm | 1900 | ||
| Weight – kg | 48 | ||
| Airflow (m3/min) – Lo-Hi | 25-31 | ||
| Noise (dBA) – Lo-Hi | 46-51 | ||
| Pipe Size Gas mm (in) | 15.88 (5/8) | ||
| Pipe Size Liquid mm (in) | 9.52 (3/8) | ||
| Electrical Supply | Fed by Outdoor Unit | ||
| Phase | Single | ||
| Fuse Rating (BS88) – HRC (A) | 6 | ||
| Interconnecting Cable No. Cores | 4 | ||
PUHZ-ZRP140VKA Outdoor Unit:
| Width – mm | 1050 |
| Depth – mm | 330 + 30 |
| Height – mm | 1338 |
| Weight – kg | 116 |
| Noise (dBA) (Heating /Cooling) | 52 /50 |
| Electrical Supply | 415v, 50Hz |
| Phase | 3 phase |
| Fuse Rating (BS88) – HRC (A) | 40 |
| SystemPower Input (kW) – Heating (Nominal) | 4.11 |
| SystemPower Input (kW) – Cooling (Nominal) | 4.12 |
| SystemPower Input (kW) – Heating (UK) | 3.66 |
| SystemPower Input (kW) – Cooling (UK) | 3.5 |
| Starting Current (A) | 5 |
| SystemRunning Current (A) – Heating / Cooling | 20.92 / 19.41 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 75 |
| Max Height Difference (m) | 30 |
| Charge (kg) – 30m | 5 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
