Description
Product Key Feature’s:
• Anti Corrosion Fin (Outdoor)
• Weekly Program
• High Power Output
• Easy-to-Clean Air Filter
• Optimal Air Distribution
• Auto Cleaning
• Auto Changeover
• Auto Restart
• Bulit in controller
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
• Optimal air distribution with directional Air flow system
Specification

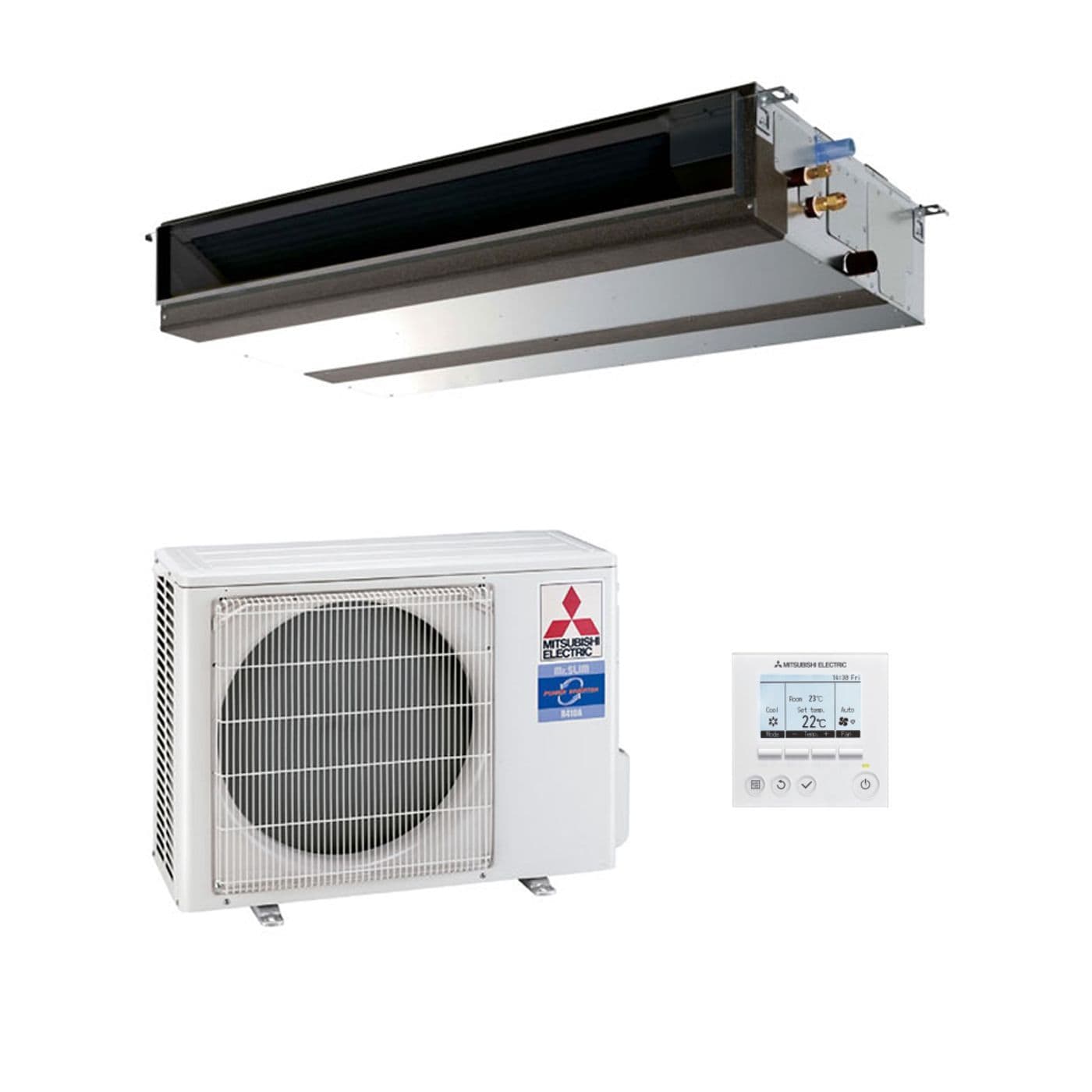

Mitsubishi Electric PEAD-RP35JAQ (3.5KW):
| Capacity (kW): | |
| Heating (Nominal) (Low – High) | 4.10 (0.90 – 5.00) |
| Cooling (Nominal) (Low – High) | 3.60 (1.00 – 3.90) |
| Heating (UK) (Low – High) | 3.40 (0.75 – 4.15) |
| Cooling (UK) (Low – High) | 3.55 (1.00 – 3.85) |
| SHF R410A (Nominal) | 0.85 |
| COP / EER (Nominal) | 3.69 / 3.4 |
| Energy Label Heating / Cooling | A / A |
| Width – mm | 900 |
| Depth – mm | 732 |
| Height – mm | 250 |
| Weight – kg | 26 |
| Airflow (m3/min) – Lo-Mi-Hi | 10-12-14 |
| External Static Pressure Pa – Lo-Mid-Hi | 35-70-150 |
| Noise (dBA) – Lo-Mi-Hi | 23-27-30 |
| Pipe Size Gas mm (in) | 9.52 (3/8) |
| Pipe Size Liquid mm (in) | 6.35 (1/4) |
| Electrical Supply | Fed by outdoor unit |
| Phase | Single |
| Fuse Rating (BS88) – HRC (A) | 6 |
| Mains Cable No. Cores | 4 |
| PUHZ-RP35VHA4 Outdoor Unit |
| Width – mm | 800 |
| Depth – mm | 285 |
| Height – mm | 550 |
| Weight – kg | 37 |
| Noise (dBA) (Heating /Cooling) | 48 /47 |
| Electrical Supply | 220-240v, 50Hz |
| Phase | Single |
| Fuse Rating (BS88) – HRC (A) | 16 |
| SystemPower Input (kW) – Heating (Nominal) | 1.11 |
| SystemPower Input (kW) – Cooling (Nominal) | 1.06 |
| SystemPower Input (kW) – Heating (UK) | 1.01 |
| SystemPower Input (kW) – Cooling (UK) | 0.85 |
| Starting Current (A) | 4.75 |
| SystemRunning Current (A) – Heating / Cooling | 5.82 / 5.62 |
| Mains Cable No. Cores | 3 |
| Max Pipe Length (m) | 20 |
| Max Height Difference (m) | 12 |
| Charge (kg) – 7m | 1.05 |
