Description
Key Product Features:
- Wi-Fi- Built in with use of Smart M-Air App
- Weekly Timer/Sleep Timer
- Allergen Clear Filter + Photo-catalytic Washable Filter
- Motion Sensor/ECO Operation/Auto Off
- Allergen Clear Filter – Effective against Covid!
- Allergen Clear Operation – Eliminates allergens & bacteria captured in anti-allergen filter in less than 90 minutes.
- Super High CoP, up to record 5.74
- New advanced technology control
- Infra-red controller with wall mounting bracket
- Reduced height slim construction
- Silver insert trim styling.

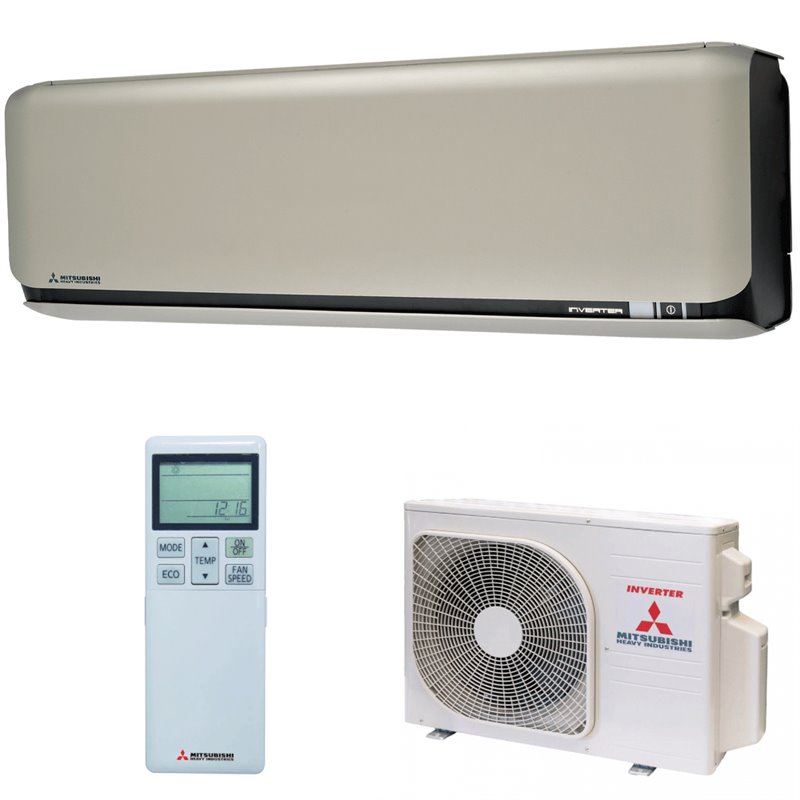

INDOOR UNIT c/w Controller | SRK50ZSX-WF, WFT, WFB | |
OUTDOOR UNIT | SRC50ZSX-W2 | |
UK Cooling | kW | 4.76 |
UK Sensible Cooling | kW | 3.84 |
Cooling Range (Nominal) | kW | 1.0 to 6.2 |
S.E.E.R , EER, Energy Label | 8.3, 4.03, A++ | |
Heating Range (Nominal) | kW | 0.8 to 8.2 |
S.C.O.P , COP, Energy Label | 4.70, 4.41, A++ | |
Annual electricity consumption c/h | kWh/a | 211/1341 |
INDOOR UNIT | ||
Exterior Dimensions (H x W x D) | mm | 305 x 920 x 220 |
Net Weight | kg | 13 |
Air Flow (H/M/L) Cooling | m3/m | 14.3 / 12.4 / 7.8 |
Air Flow (H/M/L) Heating | m3/m | 17.3 / 14.3 / 9.8 |
Sound Pressure Level (H/M/L) Cooling | db(A) | 44 / 39 / 31 |
Sound Pressure Level (H/M/L) Heating | db(A) | 47 / 41 / 33 |
OUTDOOR UNIT | ||
Exterior Dimensions (H x W x D) | mm | 640 x800(+71)x290 |
Net Weight | kg | 45 |
Sound Pressure Level Cooling/Heating | db(A) | 51 / 49 |
ELECTRICAL DATA | ||
Power Source Rating MCB | A | 20 |
Mains Power To | Outdoor | 230V/1ph/50Hz |
Interconnecting Wires (Dia) | (mm2) | 3+E (1.5) |
Start Current / Max Running Current | A | 5 / 15 |
INSTALLATION/REFRIGERANT | ||
Ref. Piping Size o.d.ins (mm) | Liquid | 1/4 (6.35) |
Suction | 1/2 (12.7) | |
Ref. Max Piping Length | m | 30 |
Vertical Height Difference (Max)*Outdoor Unit Above/Below Indoor Unit | m | 20 / 20 |
Refrigerant Amount Pre-charged | kg/ TCO2Eq | 1.30 / 0.87 |
* For Pipe Length Up To | m | 15 |
Additional Refrigerant | g/m | 20 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
